Extensor Hdmi Cat5 60 m

Extends HDMI signal up to 60 m at 1080i, 40 m in full HD (1080p)
Uses two Cat 5e/6 cables to connect the local and the remote units
Supports USB touch panel
8 segment equalization adjustment switch optimizes display quality
Support Dolby True HD and DTS HD Master Audio
Built-in 8KV/15KV ESD protection
Supports all USB 2.0 full speed device
Supports wide screen formats
HDMI (3D, Deep Color) HDCP compatible
Only one mains adapter required for local and remote unit
Extends HDMI signal up to 60 m at 1080i, 40 m in full HD (1080p)
Uses two Cat 5e/6 cables to connect the local and the remote units
Supports USB touch panel
8 segment equalization adjustment switch optimizes display quality
Support Dolby True HD and DTS HD Master Audio
Built-in 8KV/15KV ESD protection
Supports all USB 2.0 full speed device
Supports wide screen formats
HDMI (3D, Deep Color)

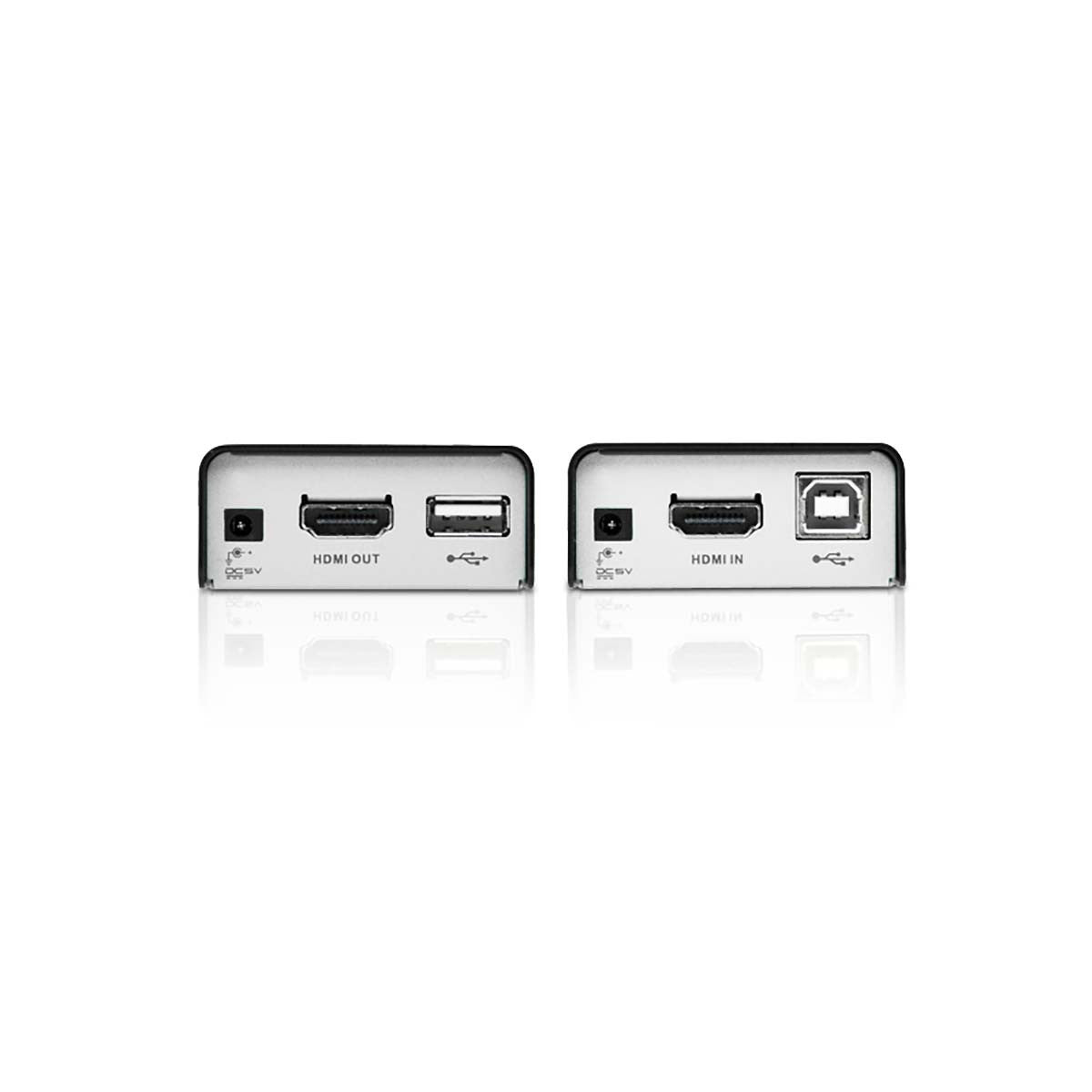

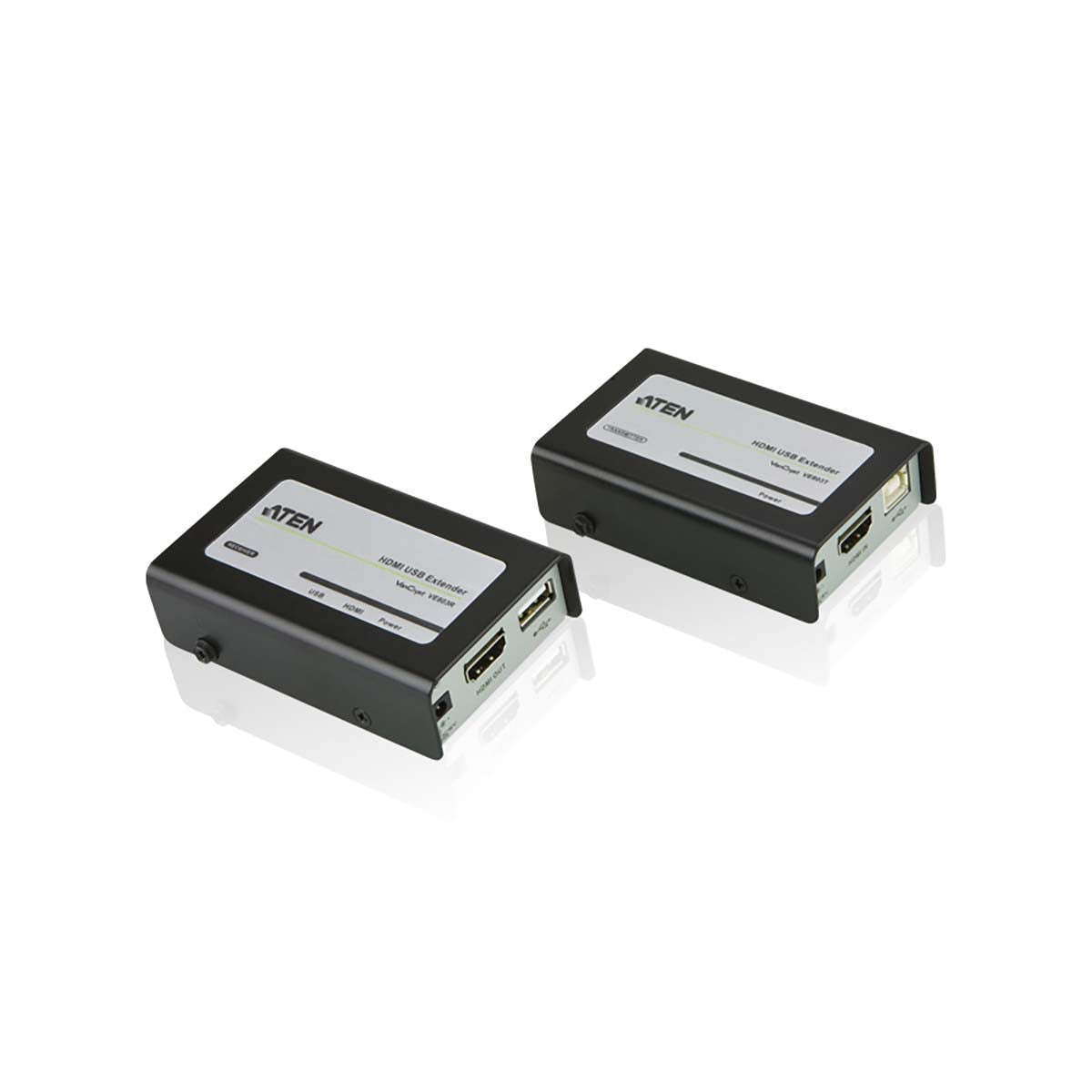

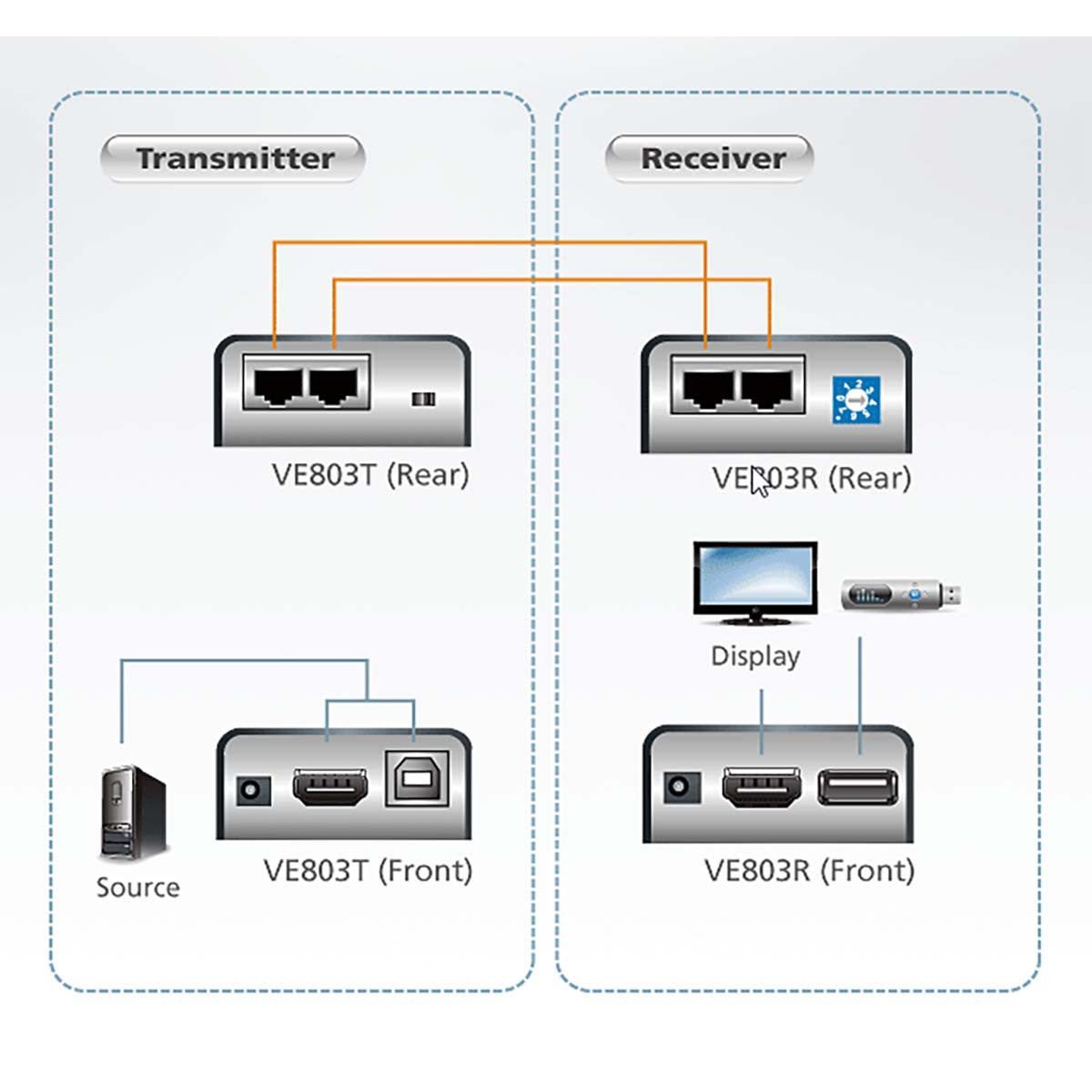

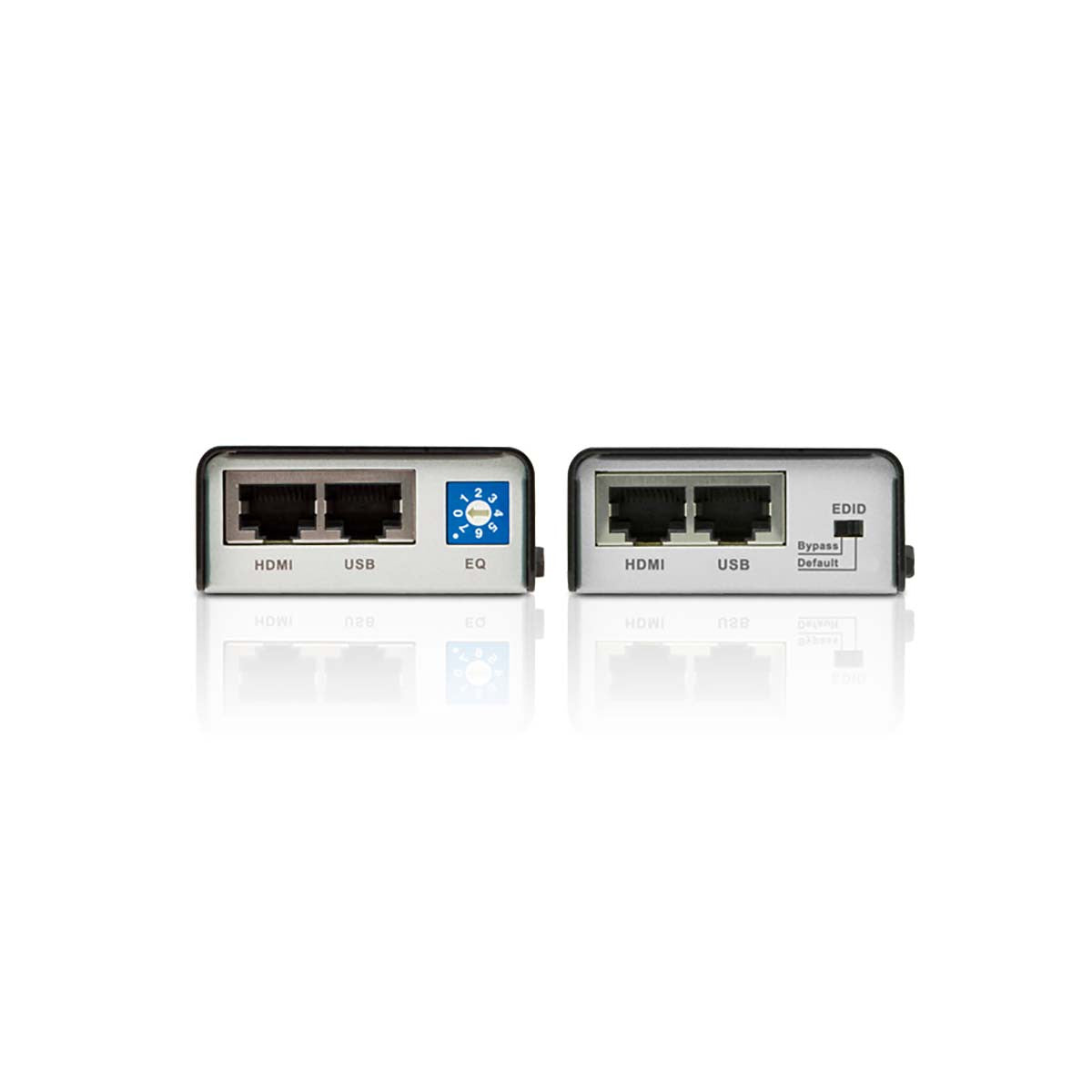

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.
Especificaciones:

Ancho de banda	225 MHz
Color	Negro
Compatibilidad de audio	Si
Compatible power supply	0AD6-1705-10EG
Conector de alimentación	Euro / Type C (CEE 7/16)
Control de función	Automático
Dimensiones	90 x 57.4 x 24 mm
Distancia	60 m
EDID settings	Default
Embalaje y empaquetado	Caja de regalo
Entrada de receptor	2x RJ45 hembra
Entrada de transmisor	1x Entrada HDMI
Entrada de transmisor	1x USB B hembra
Material exterior	Metal
Power consumption	3.9 W
Resolución máxima	1920x1080
Salida de receptor	1x Salida HDMI
Salida de receptor	1x USB A hembra
Salida de transmisor	2x RJ45 hembra
Tecnología compatible	Deep Color 30/36 bit
Tecnología compatible	Full HD
Tecnología compatible	HDCP
Tipo de dispositivo	Extensor
Tipo de dispositivo electrónico	HDMI
Velocidad de datos	6.75 Gbps
Versión	Cat5
Versión de HDCP	Compatible con HDCP 1.3

Extends HDMI signal up to 60 m at 1080i, 40 m in full HD (1080p)
Uses two Cat 5e/6 cables to connect the local and the remote units
Supports USB
