Conmutador KVM Negro

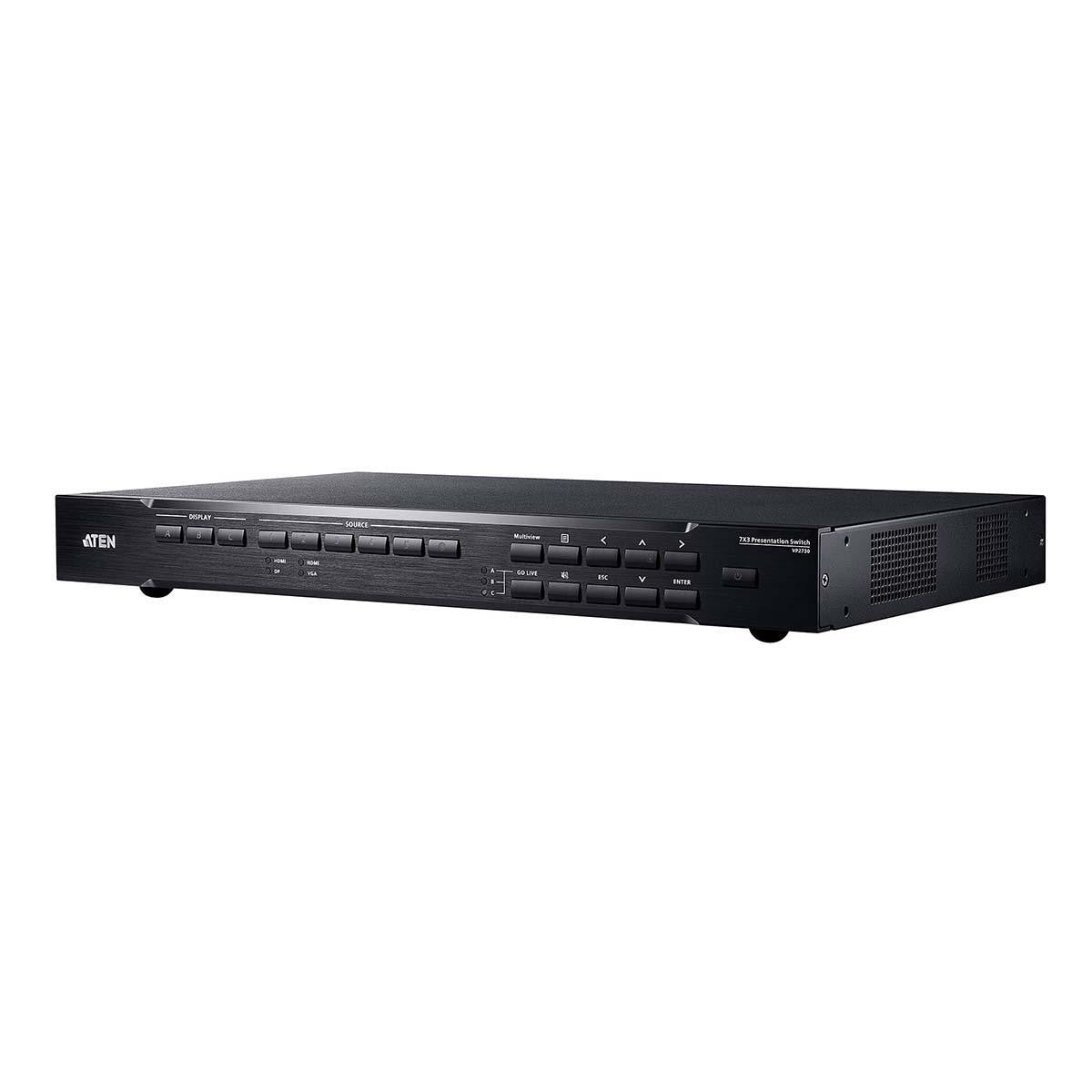

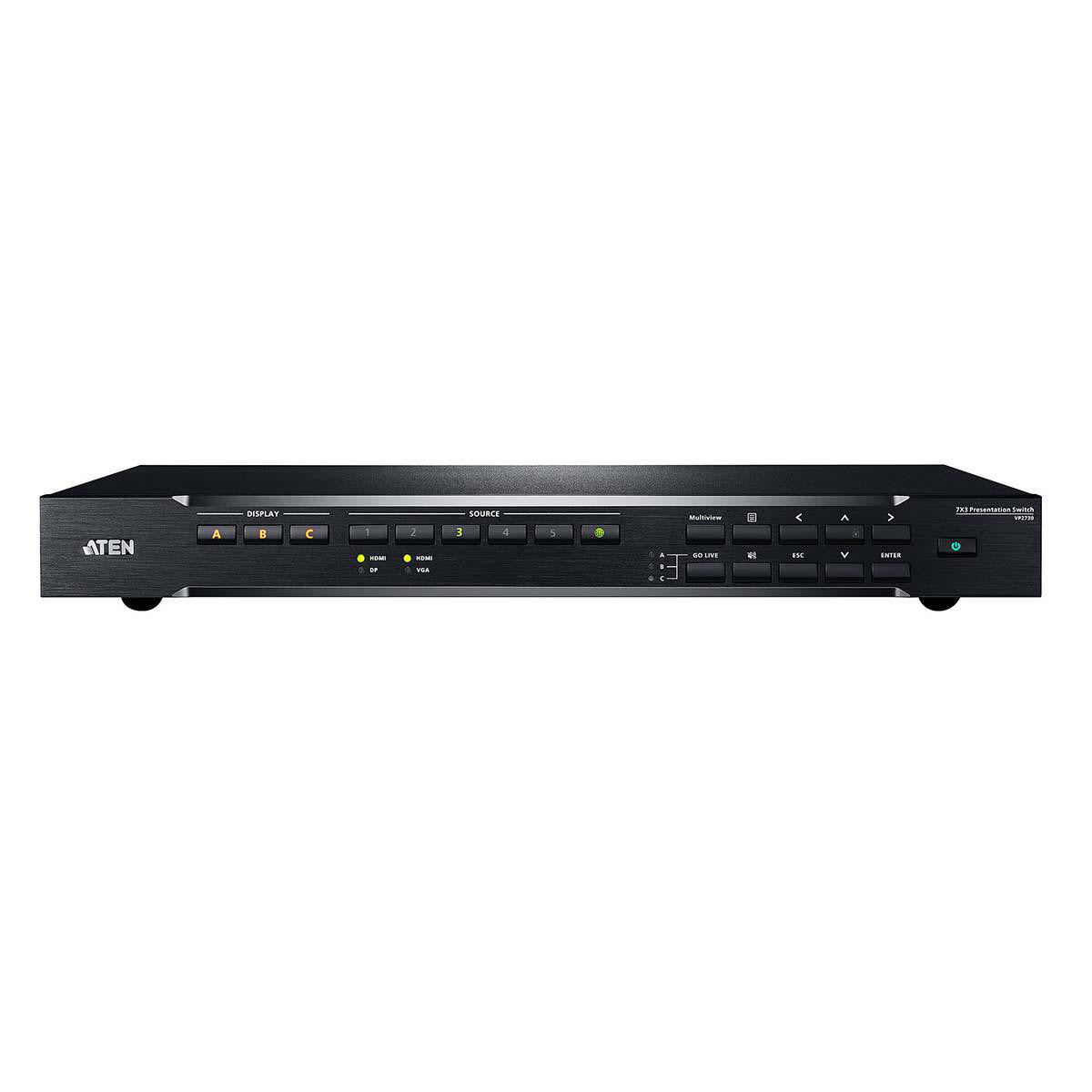

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms. With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen. VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display Chat Room facilitates meeting communications while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.
VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms. With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen. VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.
Ultra Seamless Switching with Scaler – zero second switching without any latency while scaling for the best output resolution ensures extra smooth presentations
Bi-directional Distance-free Streaming – Go live to stream out HD video to up to 5 remote sites or stream in content from a remote site via an intuitive web GUI
Built-in Audio Mixer – supports dynamic/condenser microphone input with selectable 48V Phantom Power and allows mic input to be mixed with program audio
Multi-view Flexibility – display and switch simultaneously up to six sources on PiP (picture in picture) PbP (picture by picture), quad-view, and more VP2730 7 x 3 Presentation Matrix Switch with Streaming, HDBaseT
IR Receiver
IR Remote Control
Power Cord
2x Terminal Blocks
4x Foot Pads
User Instructions

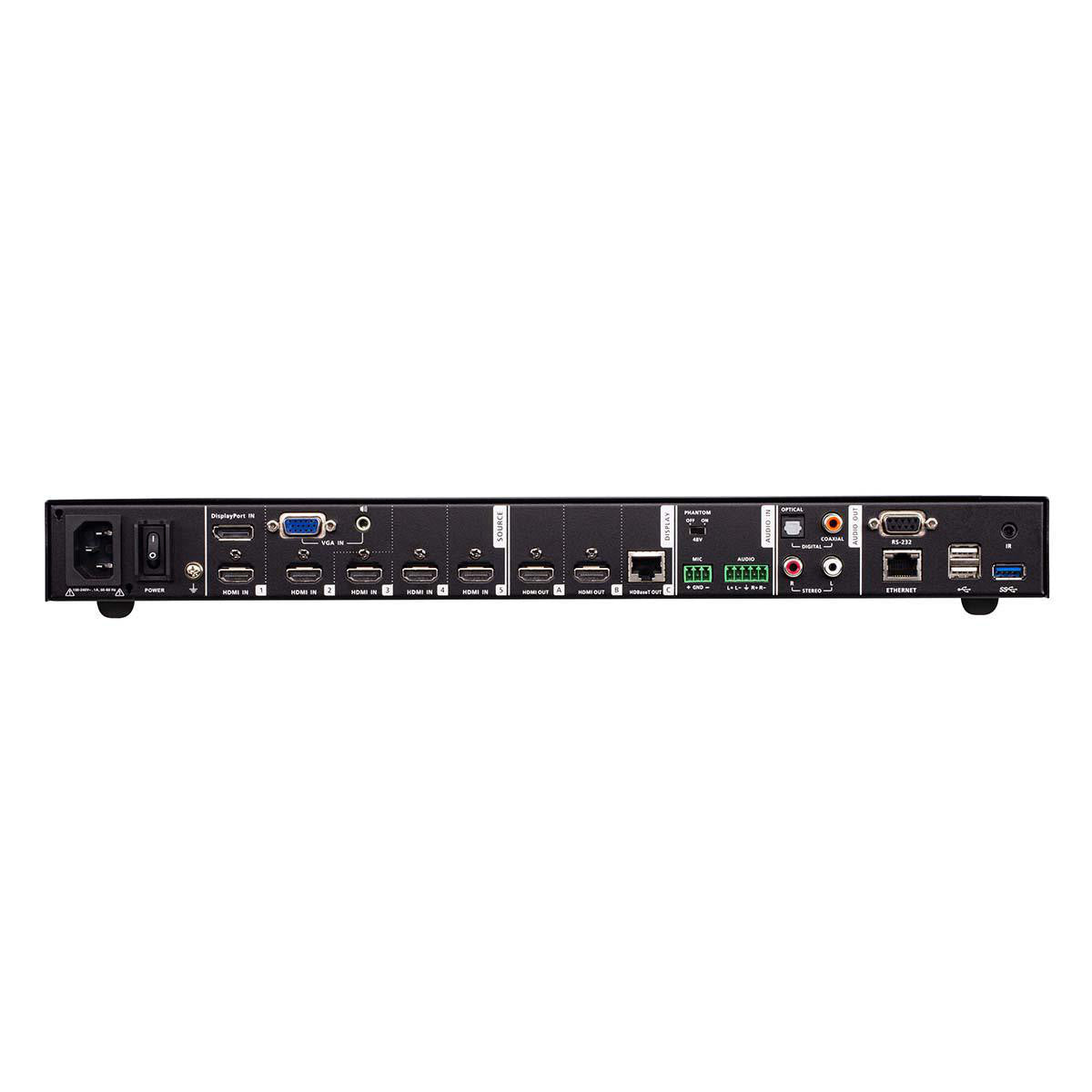

Especificaciones:

Color	Negro
Interruptores	1x 2.5mm
Interruptores	1x DisplayPort
Interruptores	1x HDB-15 Female
Interruptores	1x RJ45
Interruptores	1x RS232
Interruptores	3x USB A Hembra
Interruptores	5x Entrada HDMI
Interruptores	Tornillo 1 x 3-Pin Conector
Interruptores	Tornillo 1 x 5-Pin Conector
Salida de conexiones	1x Coaxial Audio
Salida de conexiones	1x HDBaseT
Salida de conexiones	1x óptico
Salida de conexiones	2x HDMI
Salida de conexiones	2x RCA
Tipo de dispositivo electrónico	HDMI

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-
