Conector XLR Hembra Metal Negro Conectores Audio

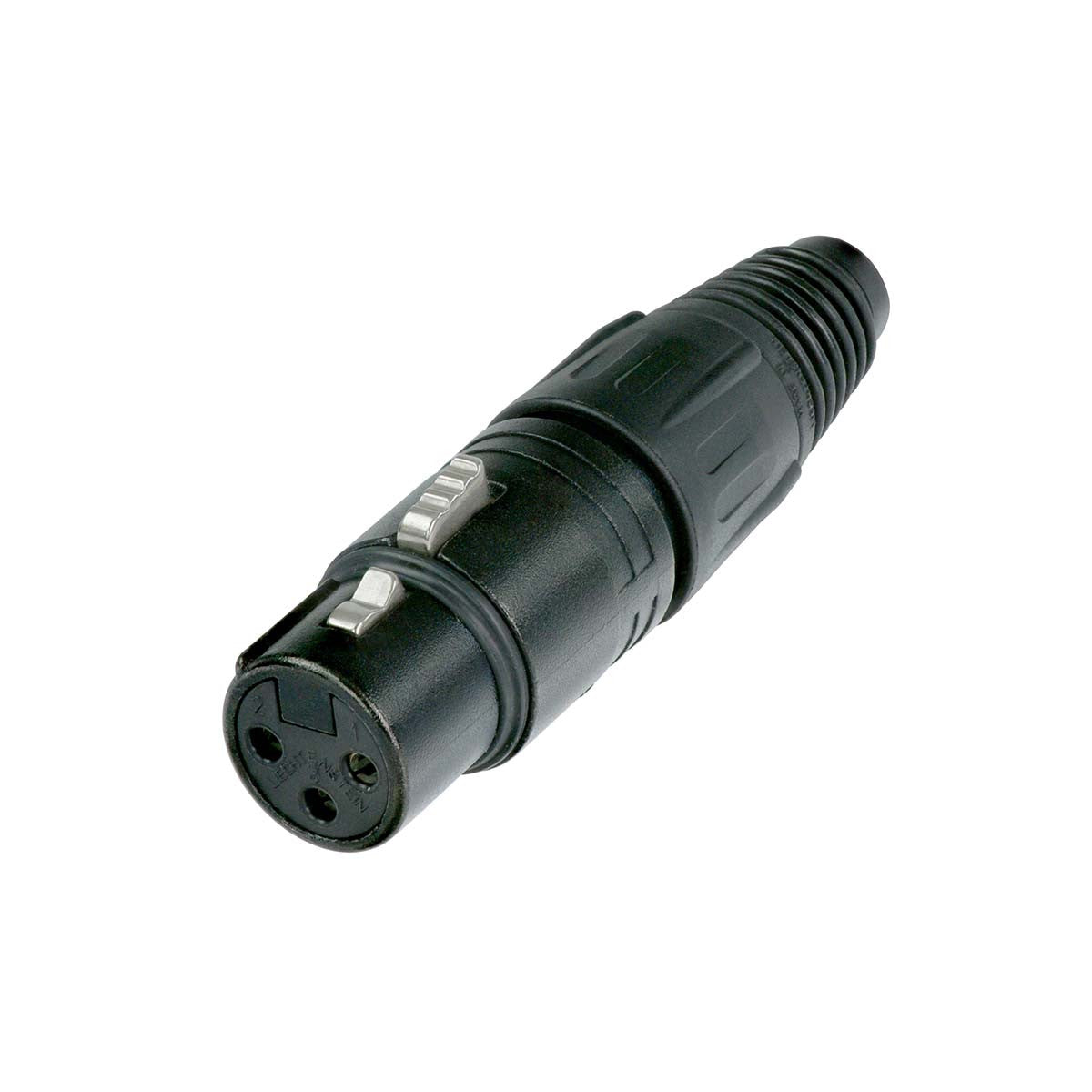

NEUTRIK NC3FXB
3 pole cable connector, female. Black metal housing and gold contacts.
NEUTRIK NC3FXB
3 pole cable connector, female. Black metal housing and gold contacts.
TECHNICAL DATA
Electrical
Number of contacts: 3
Contact resistance: ≤ 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 0.2 um Au hard alloy over 2 um Ni
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC tentative standard & Switchcraft® QG & Cannon XLR
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
Connecteur pour câble 3 pôles, femelle. Logement métal noir et contacts gold.
Especificaciones:

Carcasa de género	Hembra
Chapado	Níquel
Color	Negro
Contenido	1 pc
Diámetro	7.0 mm
Diseño del conector - lado A	Recto
Embalaje y empaquetado	Bolsa de polipropileno
Materiales	Metal
Tipo de conector	XLR
